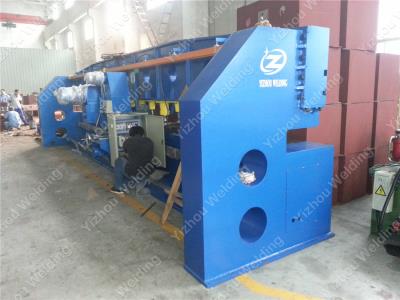

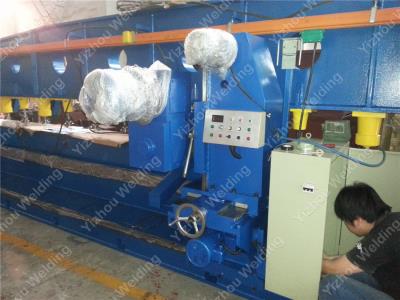

Product Name：Edge milling machine
Product No.：
XBJ-6
Tel：86-510-83051530
E-mail：info@yizhouhj.com
Add：Shengli Road, Yangshan
Industrial Park, Huishan District, Wuxi City, Jiangsu Province, China
Fax：86-510-83051530
XBJ-6
This series machine is the high-efficient advanced milling equipment deveioped by ourselves with the ability of milling replacing planning,which is used for seam preparation ahead of welding.Compared with planning machine,it has advantages as saving power,low investment and good surface finish.It is necessary equipment for the manufacture of pressure vessel,power plant,shipping,chemical industry,steel structure and so on.The standard equipment has one milling head,also two milling heads could be equipped.
Model | XBJ-6 | XBJ-9 | XBJ-12 | XBJ-15 | XBJ-18 |
Milling length(m) | 6 | 9 | 12 | 15 | 18 |
Structure | Fixed upper press-beam type | ||||
Distance between hold-down and bed(mm) | 80 | ||||
Suitable plate thickness(mm) | 6-50 | ||||
Milling angle | 0-45° | ||||
Milling head model | TX-32A/TX-40A | ||||
Milling head power and rotation speed | 5.5KW/7.5KW, 1440Rpm/min | ||||
Spindle revolution (r/min) | 125-630 | ||||
Feeding speed(m/min) | 0.13-1 | ||||
Fast forward and return speed(m/min) | 3.3 | ||||
Hydraulic system pressure(mpa) | 3.5 | ||||
Plate support | √ | ||||
